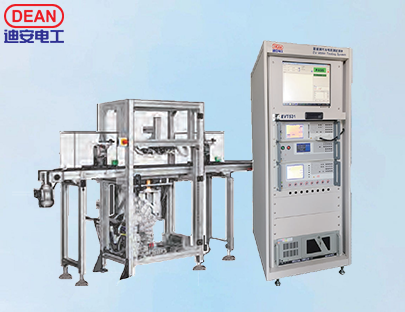

新能源汽车电机测试系统 EVT531
满足国际大厂标准测试项目的需求
程式控制与分析,减少认为疏失与误判
简易编辑环境,易学习
可同时测试多组待测物(依产品绕线组数而定)
多颗待测物进行测试时,可单独判别不良组别
层间短路波形比对,为非破坏性分析
极性测试
储存档案最多可至100组
提供密码功能
测试速度快,节省时间,提高效率
中英文页面可任意切换

To meet the standard test projects requirement of the international companies
To control and analysis the programs will reduce the human careless and misjudgment
Easy to edit environment and easy to learn
It can test multiple sets of DUTs simultaneously
When there are several DUTs are tested, it could identify the undesirable sets individually
The Impulse/Surge with waveform comparison is a non-destructive analysis
Polarity test
Maximum saved files will be up to 100 sets
It provides the password function
Speeding test could save time and improve efficiency
Chinese and English pages can be arbitrarily switched

准配件 Standard
电源线 Power  cord
使用手冊电子版 User manual CD
高压线组立 HV Test Cable
RCA接头测溫棒 RCA adapter
RS-232 连接线 Temperature Test Prob RS-232 Cable
控制线(25F-25F) Remote Cable (25F-25F)
脚踏开关 Foot switch

选择配件 Optional
客制化测试治具 Fixture PC Link
电脑联网(Motor Link Software)


直流电阻 DCR

测量范围Range

0.1m ~ 100k(线测量) 0.1mΩ - 100kΩ (4-wire measurement)

定精度

Accuracy

低阻:0.1m ~ 1 ±(0.2% ± 1m) 高阻:1 ~ 100k ±0.1%

Low Resistance0.1mΩ - 1Ω ±( 0.2% ± 1mΩ) High Resistance1Ω - 100kΩ ±0.1%

直流电阻 DCR


测量范围

Range

0.1m ~ 150(四线测量)

0.1mΩ ~150 (4-wire measurement)

稳定精度

Accuracy

0.1m ~ 200m ±( 0.1% ± 0.5m) , 200m ~ 1 ±( 0.1% ± 2m),

1 ~ 150 ±0.5%

耐压 HIPOT

测量电压

Voltage

AC 0.1kV ~ 5kV DC 0.1kV ~ 6kV

漏电电流

Leakage Current

AC 0 ~ 10mA DC 0 ~ 5mA

电弧侦测

Arcing

0~9 档位电流侦测

0~9

测试时间

Test Speed

0.1 ~ 99.9

0.1 - 99.9 Sec

稳定精度

Accuracy

3%

绝缘电阻 IR

测量电压

Voltage

100V ~ 1000V ±5%

测量范围

Test Speed

1M ~ 9.9G

测试时间

Range

0.1 ~ 99.9秒连续可调

稳定精度

Accuracy

3%

短路 Shor Circuit

测量电压

Voltage

0.2kV ~ 5kV ±2%

测量项目

Function

波形总面积、波形面差、波形颤动數、波形比电量数

Waveform total area, waveform area difference, waveform vibration number, waveform ratio, power number

稳定精度

Accuracy

2%

6420 LCR Meter

测量频率

Frequency

20Hz ~ 1MHz

AC 测试信号位准

AC test signal level

10mV ~ 2Vrms(1m Vrms解析度)


测量接点

Channel

8 channels

启动方式

Operation

RS-232

ManualRS-232

指示器

Indicator

PASS/FAIL 画面显示/声音判断

Pass/Fail Screen Diaplay Sound

环境

Environment

温度 Temperature : 10 ~ 40

湿度Humidity : 20 ~ 90%RH

测试治具

Fixture

测试需求生产制造

According to the test requirements

电源需求

Power Supply

90 ~ 132Vac or 198 ~ 264Vac

(切换)

90 ~ 132Vac or 198 ~ 264Vac

60 / 50 Hz

介面

Interface

RS-232

储存记忆体

Flash

Flash Memory重复储存 100

100 sets


测试功能项目

Item

测试范围

直流电阻

DCR

0.1m ~ 100k

绝缘电阻

IR

1M ~ 9.9G

高压漏电流

Leakage Current

0.1mA ~ 10.0mA

层间短路

Impulse

脉冲电压 200V ~ 5000V

电感

Inductance

0.01nH ~ 100kH
