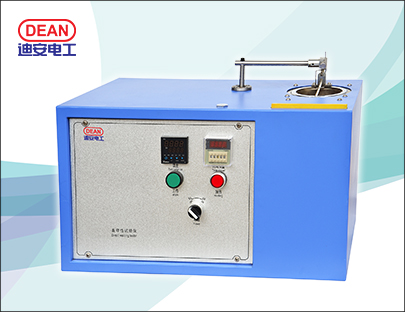

Solderable Tester
DCWT-35
Performance Characteristics of Product
Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.14-2008
Used to detect the self-solderability of enameled round wires and wire harness;
Set variable temperature range and automatically maintain constant temperature;
Under mechanical driven, samples would be withdrawn by the action of automatic insertion and lateral movement, free from vibration and noise;
Major Technical Parameters
| Capacity of solder cylinder |
＞314ml |
|
Component of soldering tin |
Sn:Pb=60:40 |
|
Solder temperature |
Ranging RT+20~500℃ adjustable |
|
Solder temperature indication error |
＜3℃ |
|
Timing device error |
＜1s |
|
Test time for samples inserting into solder tin |
Ranging 0- 99s adjustable |
|
Depth of inserting in solder tin |
35mm |
|
consumption power |
1000W |
|
working condition |
temperature:0-40℃;relative humidy:≤85% |
|
Input power |
AC220V±10% 50Hz |
