Enameled wire tester

Breakdown voltage tester

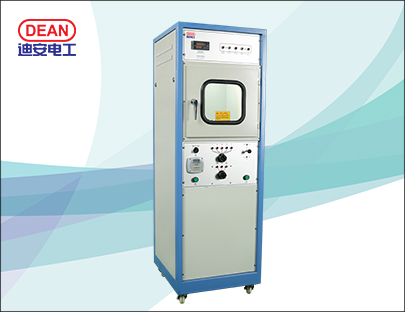

Breakdown voltage tester
ZDS-50B

Instrument Description

Executive standard: GB/T4074.5-2008/IEC60851-4; Inspection standard: JB/T4279.11-2008

Used to test the breakdown voltage performance under room temperature of enameled round and flat wires with nominal conductor diameter of 0.018mm and above;

Three voltage rise speeds are available: 20V/s, 100V/s and 500V/s, with error being ±5%;

Three test methods can be adopted: round bar method, twist pair method and ball method;

Clamp a group of test samples (5 for each) once, available to complete breakdown or withstand voltage test for any of sample one by one or individually; breakdown voltage and withstand voltage time would be automatically saved for future enquiry; all operations would be automatically completed;

Capable of conducting high temperature breakdown voltage test in combination with RDS-50 thermal-state voltage tester;

LED would automatically display test results and automatically return;

During sample breakdown, breakdown voltage indication value would be automatically locked, free from flashing, and the test result is distinct and relatively clear;

Equipped with test fixture for round rod method and twist pair method as well as the test weight for round rod method;

Equipped with ball method test device (steel balls are prepared by user);

Test door is provided with safety interlocking device, compliant with relevant regulations on high voltage testing equipment.

Major Technical Parameters

Breakdown action current	5±0.5mA
Maximum Test voltage	15000V（3 ranges: 1KV 2.5KV 15KV）
Indication value error of test voltage	＜2%
Withstand voltage time	Ranging 1-999s
Diameter of round bar pole	25±0.5mm
Rated capacity of test transformer	900VA
Input power	AC220V±10% 50Hz
Consumed power	≤1000W
Working environment	Temperature: 0-40℃;Relative humidity:≤85%
Overall dimensions	L×W×H 545×650×1700mm
Weight	125kg
