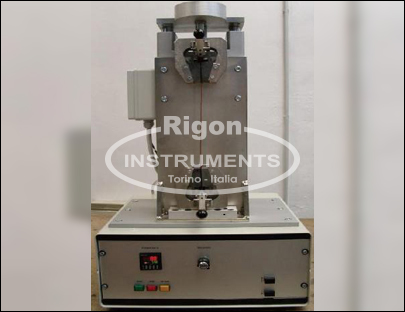

Automatic Elongation Tester
Instrument Description
- Measured with an automatic elongation tester or tester machine.Free measuring length will be 200mm~250mm
- Strength at the speed of 5MM±20% ,the value of free-measured strength percentage will be the elongation.Then do repeat three times for average.The average will be taken as “Elongation”
ET
- Suitable for wire diameter from 0.05 up to 2.75 mm
-Test length 250 mm (10 inches) and maximum percentage of elongation 53%.
- 4 digit counter with preselection of percentage of elongation, resolution 0,1%, accuracy > 0.3%.
- Adjustable translation speed from 1,5 to 8 mm/1”.
- Asynchronous motor with worm gearbox and inverter driver.
- Automatic stopping at break point and fast return.
ET1
- Suitable for wire diameter from 0.064 up to 2.15 mm
-Test length 250 mm (10 inches) and maximum percentage of elongation 53%.
- Adjustable translation speed from 1,5 to 8 mm/1”.
- Automatic stopping at break point
- Displayer directly for percentage data
- Power supply: 230AV 50/60Hz one phase 250VA
- Dimensions: W950×H500×D650mm
- Weigh: 34KG
Options
- D Load cell
o-font-kerning:1.0000pt;" >- D测力装置
