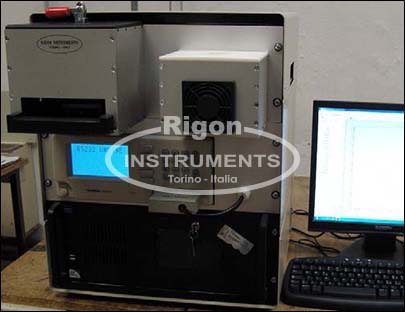

Tangent Delta Tester
Instrument Description
- With graphite
A sample of enameled wire shall be wiped with a soft cloth, then spread with a water graphite solution on 100mm lengt and dried in an oven. The specimen shall be inserted in a thermostatic oven to measure the tan delta value versus temperature variation, any value shall be recorded.
- With alloy
A sample of wire shall be bent into a U-shape to be lowered into the metal bath.
- Suitable for wire diameter range from 0.05 up to 5.00 mm (alloy suitable 0.016~5mm)
- Maximum working temperature 400°C.
- Fast test time from 2’ up to 6’, with adjustable rising temperature from 1°C/1’up to 70°C/1’ for all sizes.
- Test frequency 1 KHz accuracy 0.01%, amplitude 5 V RMS
- Dissipation factor value resolution 0.0001
- Easily operation
- Great data base
- Automatic print-out the curve
- Comparation
-Dimensions: W500×H600×D650mm
- Power supply: 230AV 50/60Hz 1200VA
- Weight: 58KG
