Enameled wire tester

Intelligent and Unidirectional Scrape Tester

Intelligent and Unidirectional Scrape Tester

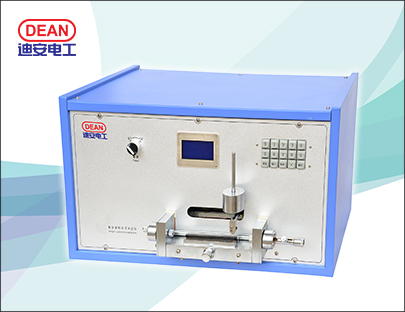

ZDG-25

Description of Product

Executive standard: GB/T4074.3-2008/IEC60851-3

Inspection standard: JB/T4279.9-2008

Meet GB/T6109-2008 standard requirements

Used to test the film scrap resistance of enamelled round wires with nominal conductor diameter above0.250mm;

Application of SCM control，enter the weight value, operation will be completed automatically: put down the scraping rod, stop while film scratch, calculate and show the scraping force, raise the scraping rod, return to zero, sample rotates 120°and repeat the same operation, calculate and show the scraping force of three times and average scraping force.

When film is scratched, film scraper would automatically stop scraping, with exposed conductor of sample＜3mm

With the advantages of high sensitivity, good repeatability, stable and reliable characteristics.

Major Technical Parameters

Test range	≥φ0.25mmenamelled round wire
Movement distance of scraper	＞100mm
Movement speed of scraper	400±40mm/min
Test voltage	DC 6.5±0.5V
Short-circuit current	20±0.5mA
Scraping force error	＜±5%
Input power	AC220V±10% 50Hz
Consumed power	＜150W
The environment temperature	0～40℃，relative humidity ≤85%
